A new ultrafast way to produce stable perovskite cells and assemble them into solar modules could offer a greener way to power devices, buildings, and even the electricity grid, researchers report.
Most solar cells today are made with refined silicon that turns sunlight into clean electricity. Unfortunately, the process of refining silicon is far from clean, requiring vast amounts of energy from carbon-emitting power plants.
For a greener alternative to silicon, researchers have focused on thin-film perovskites—low-cost, flexible solar cells that can be produced with minimal energy and virtually no CO2 emissions.
But, while perovskite solar cells show promise, significant challenges remain before they can become commonplace, not least of which is their inherent instability, which makes manufacturing them at scale difficult.
“Perovskite solar technology is at a crossroads between commercialization and flimflammery,” says Nick Rolston, a postdoctoral scholar at Stanford University. “Millions of dollars are being poured into startups. But I strongly believe that in the next three years, if there isn’t a breakthrough that extends cell lifetimes, that money will start to dry up.”
That’s why the new process is so exciting, Rolston says. He and his colleagues describe the new method in the journal Joule.
“This work provides a new milestone for perovskite manufacturing,” says study senior author Reinhold Dauskardt, professor in the Stanford School of Engineering. “It resolves some of the most formidable barriers to module-scale manufacturing that the community has been dealing with for years.”
Fingernail-size samples
Perovskite solar cells are thin films of synthetic crystalline made from cheap, abundant chemicals like iodine, carbon, and lead.
The thin-film cells are lightweight and bendable, and researchers can grow them in open-air laboratories at temperatures near the boiling point of water, a far cry from the 3,000-degree Fahrenheit (1,650-degree Celsius) furnaces needed to refine industrial silicon.
Scientists have developed perovskite cells that convert 25% of sunlight to electricity, a conversion efficiency comparable to silicon. But these experimental cells are unlikely to be installed on rooftops anytime soon.
“Most work done on perovskites involves really tiny areas of active, usable solar cell. They’re typically a fraction of the size of your pinky fingernail,” says Rolston, who co-led the study with William Scheideler, a former Stanford postdoctoral scholar now at Dartmouth College.
Attempts to make bigger cells have produced defects and pinholes that significantly decrease cell efficiency. And unlike rigid silicon cells, which last 20 to 30 years, thin-film perovskite eventually degrades when exposed to heat and moisture.
“You can make a small demonstration device in the lab,” Dauskardt says. “But conventional perovskite processing isn’t scalable for fast, efficient manufacturing.”
Power conversion efficiency
To address the challenge of large-scale production, the researchers deployed a patented technology they recently invented called rapid-spray plasma processing.
The technology uses a robotic device with two nozzles to quickly produce thin films of perovskite. One nozzle spray-coats a liquid solution of perovskite chemical precursors onto a pane of glass, while the other releases a burst of highly reactive ionized gas known as plasma.
“Conventional processing requires you to bake the perovskite solution for about half an hour,” Rolston says. “Our innovation is to use a plasma high-energy source to rapidly convert liquid perovskite into a thin-film solar cell in a single step.”
Using rapid-spray processing, the team produced 40 feet (12 meters) of perovskite film per minute—about four times faster than it takes to manufacture a silicon cell.
“We achieved the highest throughput of any solar technology,” Rolston says. “You can imagine large panels of glass placed on rollers and continuously producing layers of perovskite at speeds never accomplished before.”
In addition to a record production rate, the newly minted perovskite cells achieved a power conversion efficiency of 18%.
“We want to make this process as applicable and broadly useful as possible,” Rolston says. “A plasma treatment system might sound fancy, but it’s something you can buy commercially for a very reasonable cost.”
The team estimates that their perovskite modules can be manufactured for about 25 cents per square foot—far less than the $2.50 or so per square foot needed to produce a typical silicon module.
Perovskites with long-lasting efficiency
Silicon solar cells are typically connected together in encapsulated modules to boost their power output and withstand harsh weather conditions. Perovskite manufacturers will eventually have to build stable, efficient modules to be commercially viable.

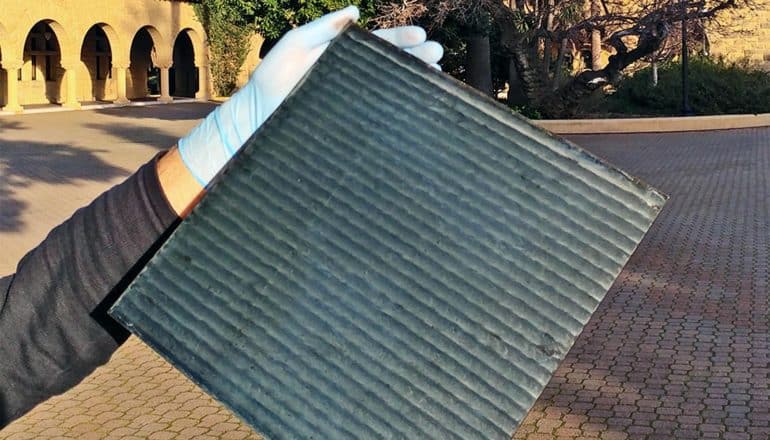

Toward this end, the researchers successfully created perovskite modules that continued to operate at 15.5% efficiency even after being left on the shelf for five months.
Conventional silicon modules produce electricity at a cost of about 5 cents per kilowatt-hour. To compete with silicon, perovskite modules would have to be encapsulated in a weatherproof layer that keeps out moisture for at least a decade. The research team is now exploring new encapsulation technologies and other ways to significantly improve durability.
“If we can build a perovskite module that lasts 30 years, we could bring down the cost of electricity below 2 cents per kilowatt-hour,” Rolston says. “At that price, we could use perovskites for utility-scale energy production. For example, a 100-megawatt solar farm.”
Additional researchers from the US Department of Energy’s National Renewable Energy Laboratory and Stanford contributed to the work. The US Department of Energy’s Office of Energy Efficiency & Renewable Energy, and the National Science Foundation’s Graduate Research Fellowships Program supported the research.
Source: Stanford University
